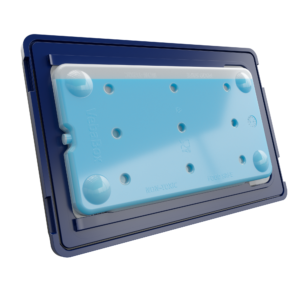

Cooling plate -21ºC

Our removable, high-performance Cooling plate (PCM) compatible with the Model 6040's lid maintains the required temperature without dry ice or external power. The plate slides into a dedicated slot in the lid and can be easily swapped depending on your temperature needs. By selecting the appropriate plate, the VebaBox Model 6040 supports chilled, frozen, or ambient transport with consistent performance.

Need help selecting the right PCM?

Get in touch with us!

-21ºC

Phase changing temperature

-22ºC to -15ºC

Temperature Range

20 h

Performance Duration

Specifications

This is Cooling plate -21ºC

External Dimensions 507 x 297 x 40
Volume 2,6 L
Weight 3,5 Kg
Phase Changing Temperature -21ºC
Must be prepared at -26ºC for 48h
Temperature Range -22ºC to -15ºC
Temperature Duration 20h at ambient temperature of 30ºC
Latent heat caoacity (KJ/kg) 203

Request quote

Complete the contact form

”*” anger obligatoriska fält

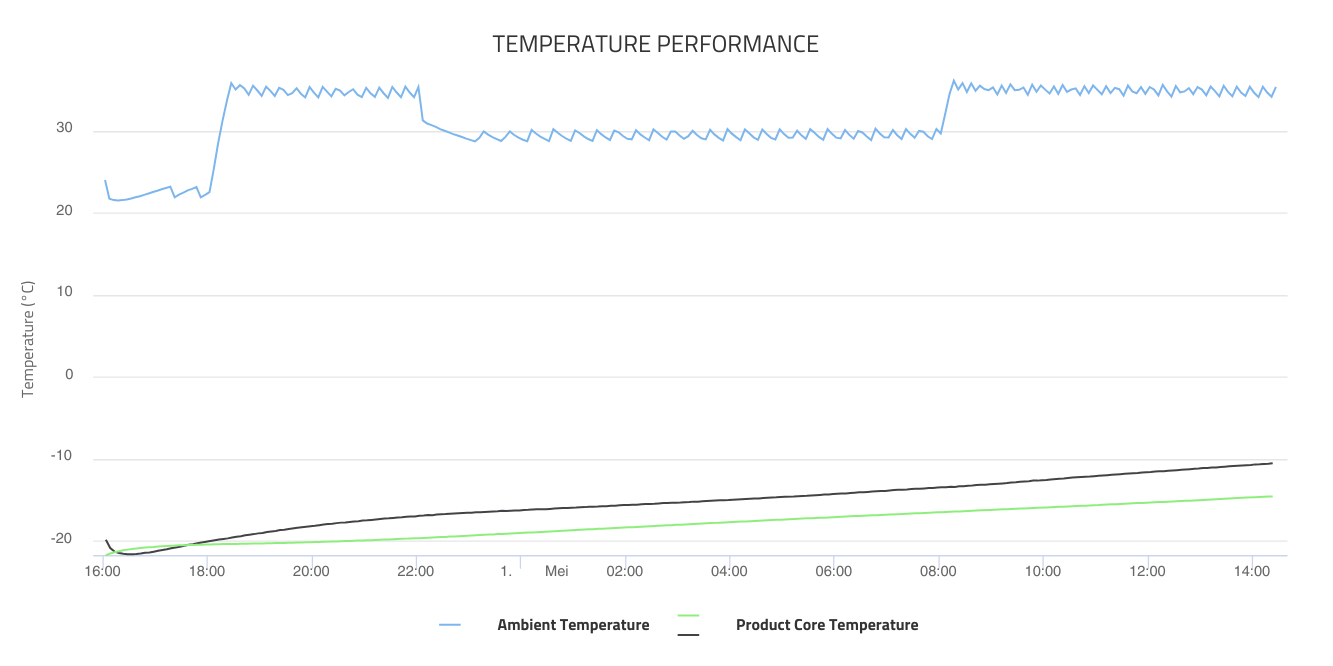

Temperature performance

ISTA 7D Summer Profile Test Conditions

Testing was performed at an average ambient temperature of +30ºC according to the International Safe Transit Association ISTA 7D summer profile.

The PCM element was conditioned for 48 hours at -20ºC. The payload consisted of 11.4 kg frozen products with the core temperature of -21.5ºC, incluiding 10 kg fries and 1.4 kg sausages.

Performance Duration: 21 h
